Medical and Industrial Regulators

We are distributors of Alcan International Limited and ESAB India Limited for their all kinds of medical aluminium cylinders, medical regulators, industrial regulator, stainless steel regulators, special purpose regulators, cutting torches, welding toches and other welding equipments for East Africa. All these products are designed and manufactured to exact standards using the highest quality materials. Every product is 100% tested for reliable performance. All Products have a proven tradition of excellence, outstanding quality and durability.

Medical Regulators

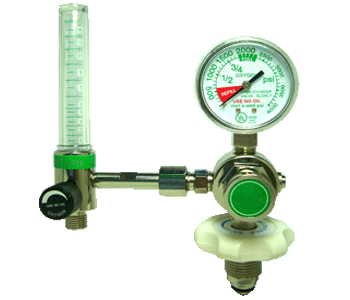

Side Entry Medical Oxygen Regulator - Silent Features

• Crome polished brass body diaphragm type regulator.
• Neoprene diaphragm with internal safety valve protects against.
• 2" pressure gauge UL approved.
• Unbreakable transparent polycarbonate inner and outer tube for durability and safety.
• Longer life.
• Flowmeter - 1 to 15 LPM.
• Inlet screw thread - M10*1mm.
• Outlet screw thread - UNF9/16-18".
• Maximum inlet pressure: 230 bar.
• Maximum working pressure - 3.5bar.
• Gas Type - oxygen.

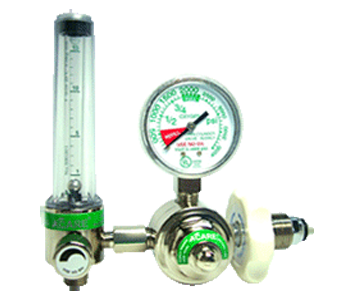

Top Entry Medical Oxygen Regulator - Silent Features

• Crome polished brass body piston style regulator.
• 2" pressure gauge UL approved.
• Unbreakable transparent polycarbonate inner and outer tube for durability and safety.
• Longer life.
• Flowmeter - 1 to 15 LPM.
• Inlet screw thread - M10*1mm.
• Outlet screw thread - UNF9/16-18".
• Maximum inlet pressure: 230 bar.
• Maximum working pressure - 3.5bar.
• Gas Type - oxygen.

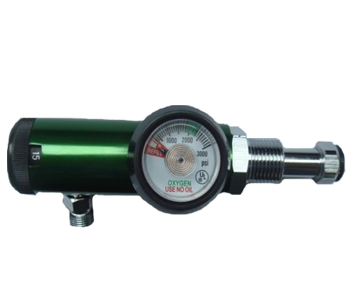

Bull Nose Type Medical Oxygen Regulator - Silent Features

• All brass pressure chamber can provide maximum safety and high performance.
• 1-1/2" pressure gauge UL approved.
• The recessed adjoining body are well integrated with easy turned flow knob which is clear view in flow precise adjustment.
• Longer life.
• Light weight body.
• Flowmeter - 1 to 15 LPM.
• Downward facing outlet port for safety and durability.
• Clear flow window for flow setting.
• Gas Type - oxygen.

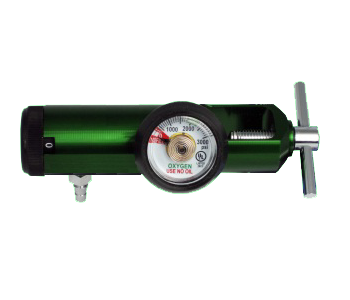

Pin Index Type Medical Oxygen Regulator - Silent Features

• All brass pressure chamber can provide maximum safety and high performance.
• 1-1/2" pressure gauge UL approved.
• The recessed adjoining body are well integrated with easy turned flow knob which is clear view in flow precise adjustment.
• Longer life.
• Light weight body.
• Flowmeter - 1 to 15 LPM.
• Downward facing outlet port for safety and durability.
• Clear flow window for flow setting.
• Gas Type - oxygen.







Industrial Regulators

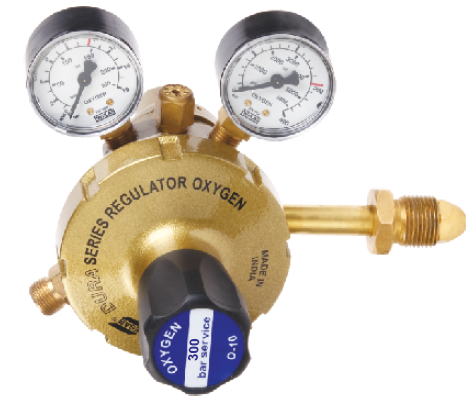

Double Stage Regulator - Silent Features

• First time a regulator suitable for 300 bar inlet pressure and imported safety pressure gauges designed for 400 bar pressure, confirming ISO5171 standards.
• Much more rugged.
• Longer life.
• Much bigger plenum chamber ( 2nd stage plenum chamber is 5 times the volume of 1st stage plenum chamber) ensures:
» Outlet pressure stability.
» Steady flow of gases.
• Fire retardant valve material.
• Non Bursting Stainless Steel Diaphragm in 1st srage - can withstand stock of full cylinder pressure.
• Neoprene valve in 2nd stage - gives flexibility and better pressure regulation.
• High strength bull nose and nippal
• ISI Certification.
• Look For Seal of Safety.
• Gas service - Oxygen, Nitrogen, Hydrogen, Acetylene, Argon, Carbondie Oxide.

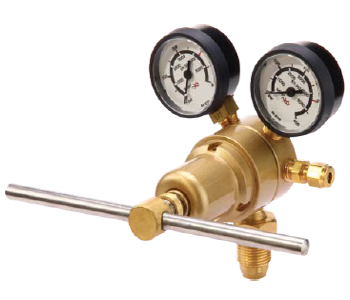

Special Purpose High Pressure Regulator - Silent Features

This Regulator is in wide spread use through out the industry. It has proven performance in applications where stable high pressure and flows are required. This regulators are used in jobs of critical nature such as aerated bottling plants, cable pressurisation, power generating, pipeline testing, refrigeration, air conditioning industry and a wide variety of laboratory applications in universities, nuclear and chemical industry.

Silent Features
• Forged brass body construction.
• Double safety feature safety valve and bursting disc prevention at second stage.
• Inlet filter to prevent ingress of foreign particles at high velocity.
• Non Bursting Stainless Steel Diaphragm on first stage to withstand shock of full cylinder pressure. Neoprene to give fexibility and long life on second stage.
• Easy read pressure gauges.
• Maximum inlet pressure 230 bar.
• Maximum outlet pressure 40 bar.
• Gas service - Oxygen, Nitrogen.

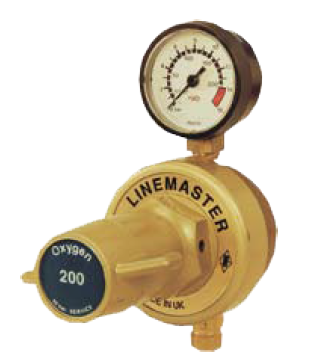

Special Purpose Line Master Regulator - Silent Features

The incrased use of manifold cylinders and piped gases have created a need for specialised regulators. One benefit of piped gas supply is relatively low pressure of gas within the building. This demands a regulator with large orifics and streamline gas passage to pass large volumes at low inlet pressure.

The Linemaster is specially designed for this service and is available for use with most gases at range outlet pressure 14 bar and is now fitted with a captive pressure adjustment knob foe added control and safety.

• Easy read pressure gauges.
• Maximum outlet pressure 41 bar.
• Gas service - Oxygen, Nitrogen, Hydrogen, Acetylene, Argon, Helium .

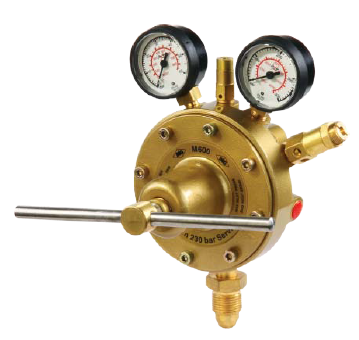

Special Purpose High Pressure Regulator - Silent Features

• First time a regulator suitable for 300 bar inlet pressure and imported safety pressure gauges designed for 400 bar pressure, confirming ISO5171 standards.
• Much more rugged.
• Longer life.
